Bleachers 5 ROW Non-Elevated w/Aisles/Handrail

5 ROW Non-Elevated Preferred Bleacher w/ 48" Aisles/ Handrails

*POWDER COAT PAINTED STEEL FRAMES*
See below for paint color options/requirements.

All seats use 9 5/8"x 1 3/4" clear coated aluminum planking. Walk planks are 9 5/8" x 1 3/4"mill finished aluminum planking. Double walk planks are use on all seat elevation with vertical kick boards at all levels. 48" step aisles provided egress from bleaches with center hand rail intermittently spaced up the aisles. In addition, bleacher configurations above 30" have opening of less than 4". Basic framing up to six seat tiers is all WELDED structural steel angle with bolted cross bracing to improve bleacher strength for end shift loads. Add on frames for 7-8 and 9-10 seat levels are fully welded, bolt-on extensions. Framing is spaced on six feet centers. Treated 2 x 4 wood runners are bolted to the bottom of each frame to provide improve stability on soft surfaces. Rubber floor protectors may be substituted as per customer requirements. Safety rails using steel vertical slats are installed as per the recommendations of the IBC 2002 guidelines for bleachers with surfaces above 30". All steel construction is powder coat painted normally black. Additional colors are available with orders of 5 or more-any combination of bench or bleacher by this manufacturer.

Any bleacher 21' and over bleacher frames ONLY can be painted. Planks cannot be painted.


*Available paint colors:
Red/Royal/Navy/Forest/Kelly/Yellow/Orange/Purple/Grey

Bleachers ship within 10-12 working days.
Lead time for 27' Bleachers: 4-6 weeks.

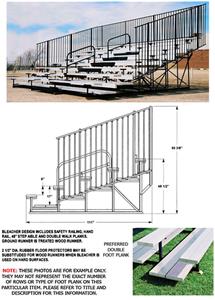

NOTE: PHOTOS ARE FOR EXAMPLE ONLY. THEY MAY NOT REPRESENT THE EXACT NUMBER OF ROWS OR TYPE OF FOOT PLANK ON THIS PARTICULAR ITEM. PLEASE REFER TO TITLE AND DESCRIPTION FOR THIS INFORMATION.

Due to color differences in monitors, the colors on this site are for reference only. Please contact Epic Sports if you have any color questions.
